Description
Size: 2″,2.5″
Technical Data:
- Construction: One Piece Body
- Design: Top Entry
- Size Range:40,50,63,75 Mm Screwed End
- Max Working Temp.: 90º C.
- Gasket / Stem Seal: Rubber
- Test Pressure: 10kg/Cm2
FEATURES

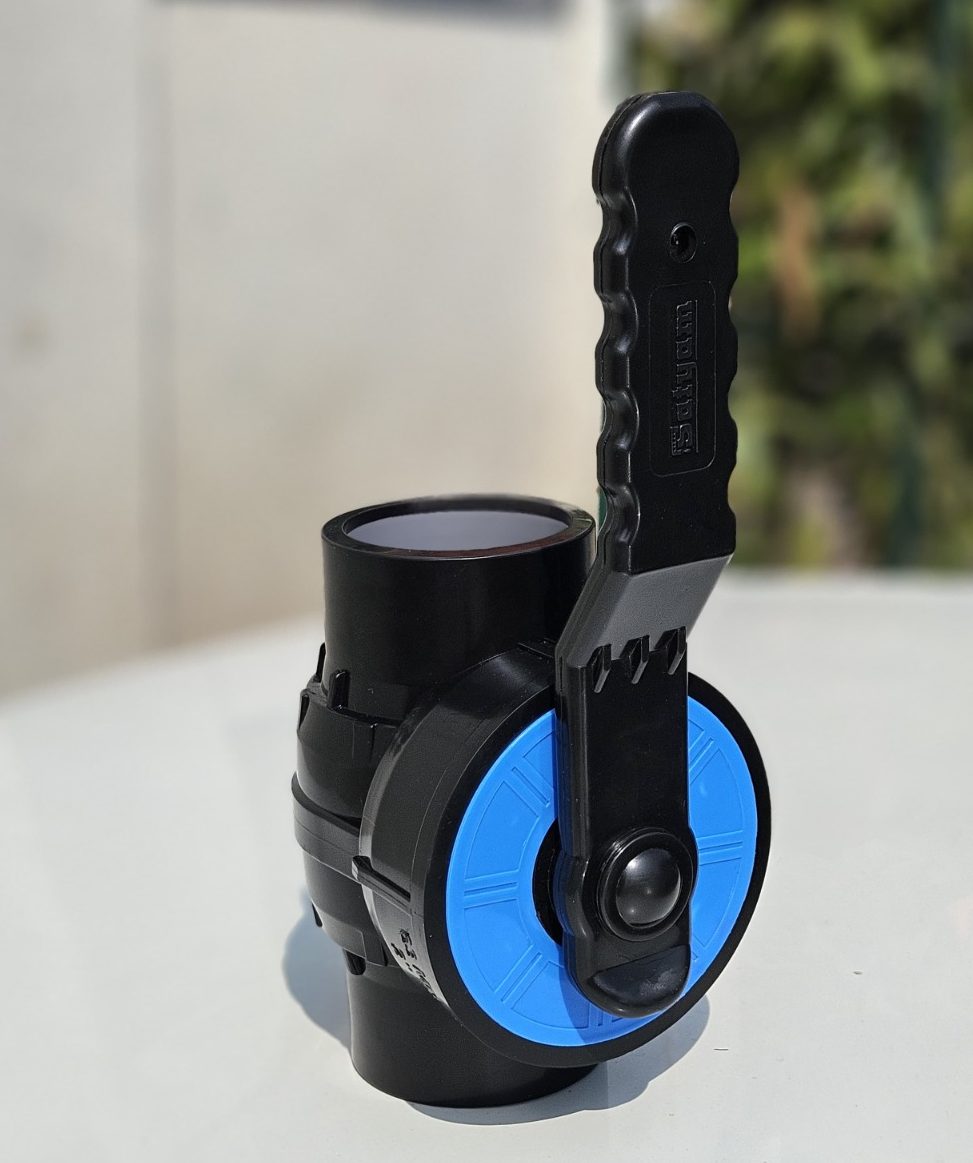

- One Piece Top Entry Ball valve is manufactured from polypropylene, a chemically inert thermoplastic.
- One Piece Top Entry Ball valve is especially suited for Drip Irrigation System.
- A one-piece rugged body eliminates joints/unions / Gaskets / Fasteners and consequently eliminates leakage and corrosion.
- On-line maintenance is possible as all internals can be replaced without removing the valve from the pipeline.
- Since this ball valve contains no metal parts, failure due to corrosion is eliminated.
- Carbon black and UV stabilizers resist ultraviolet rays and prevent degradation of PP in sunlight exposure.
- Proper care is taken for full strength and leakage-proof manufacturing design.
- Every piece is tested before dispatch. Hydraulically tested at 210kg/cm.
- Approved and used by many known Drip Irrigation manufacturers.
Application:
- With a top entry ball valve, sprinkler system and irrigation system control becomes easy.
- These high-quality ball valves can be used to create a manual shutoff any where in your irrigation system.
- That’s ideal for emergency situations as well as for routine maintenance, repair or renovation procedures.
